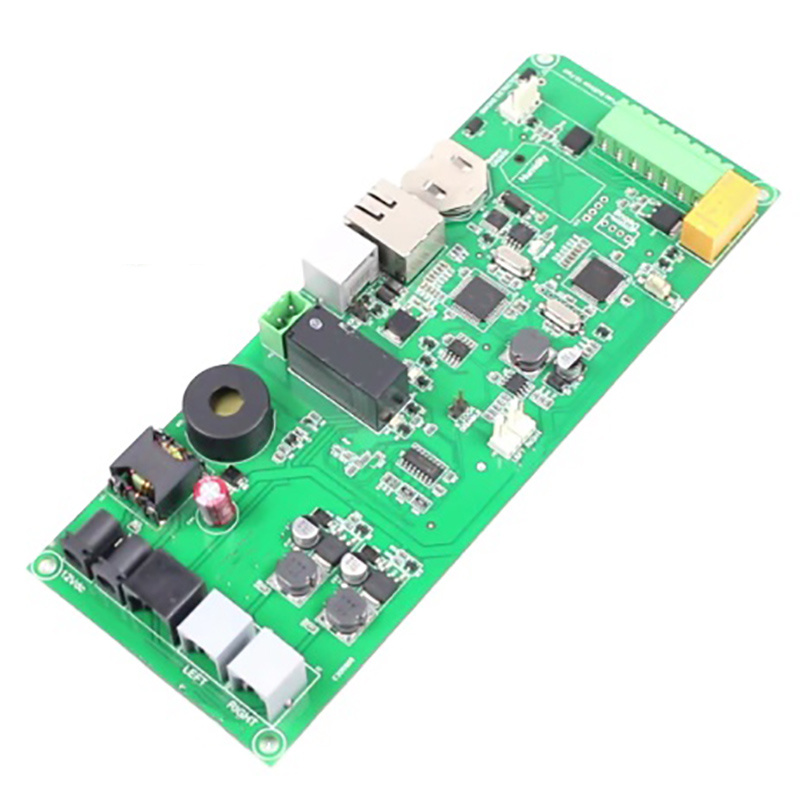

PCB Assembly/PCBA

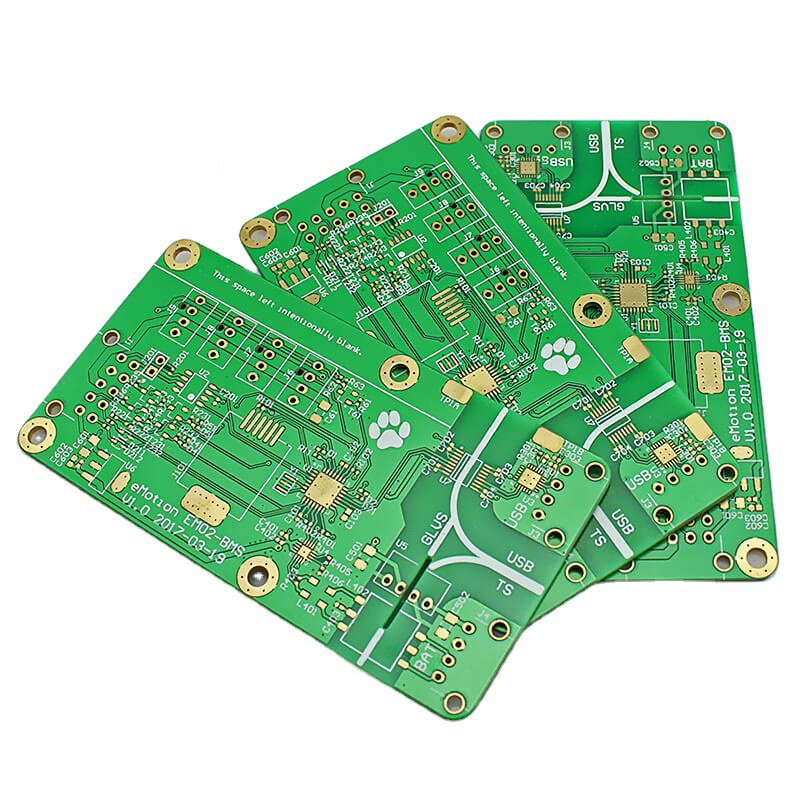

PCB Manufacturing

PCB Custom

Who We Are

Pinsheng is a professional manufacturer engaged in PCB production. The main products are single-sided, double-sided and multi-layer PCB boards. It can produce PCB boards with various special requirements, such as high-precision half-hole circuit boards, impedance circuit boards, and buried blind vias. Board, and undertake the production of SMT processing, DIP processing, component procurement, etc. Since the establishment of the factory in 2006, the company has introduced advanced production and testing equipment from Taiwan and Germany; hired experienced management personnel and technical backbones, and product quality strictly abides by IPC standards And the US military MIL standard.

PCB AND PCB ASSEMBLY

No.	File Format	Types Of Assembly	Component Footprinr	Component Package	Testing Produres	Produres	Others
1	Gerber RS-274X	SMT ASSEMBLY	0201,0402,0603…	Reels Package	Visual Inspection	Lead-Free(Rohs)	Custom Reflow Profile
2	Protel, DXP,POWER PCB	SMT & THT Assembly	BGA,QFN,QFP,PLCC	Cut Tape Package	X-Ray Inspection	Leaded Solder	Standard Reflow Profile
3	BOM(.xls,.csv,.xlsx)	2 sided STM,THT Assembly	SOIC,POP…Connectors	Tube and Tray	AOI,ICT(In-Circuit Test)	Reflow Soldering	Smallest Size:0.2″x0.2″
4	Pick-N-Place/XY file	Mixed Assembly	Small Pitch of 8 Mils	Loose parts and bulk	Functional Testing	Wave Soldering	Largest Size:15″x”20

Quality inspection equipment

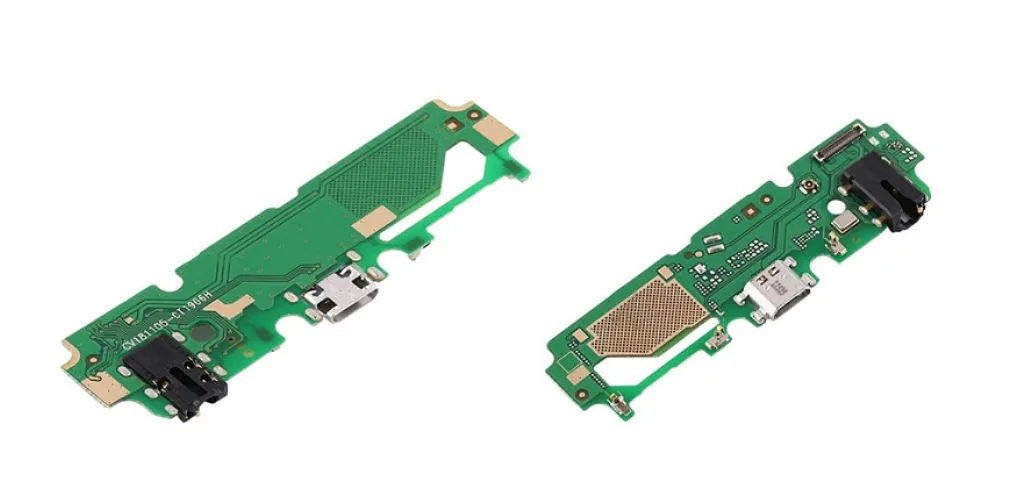

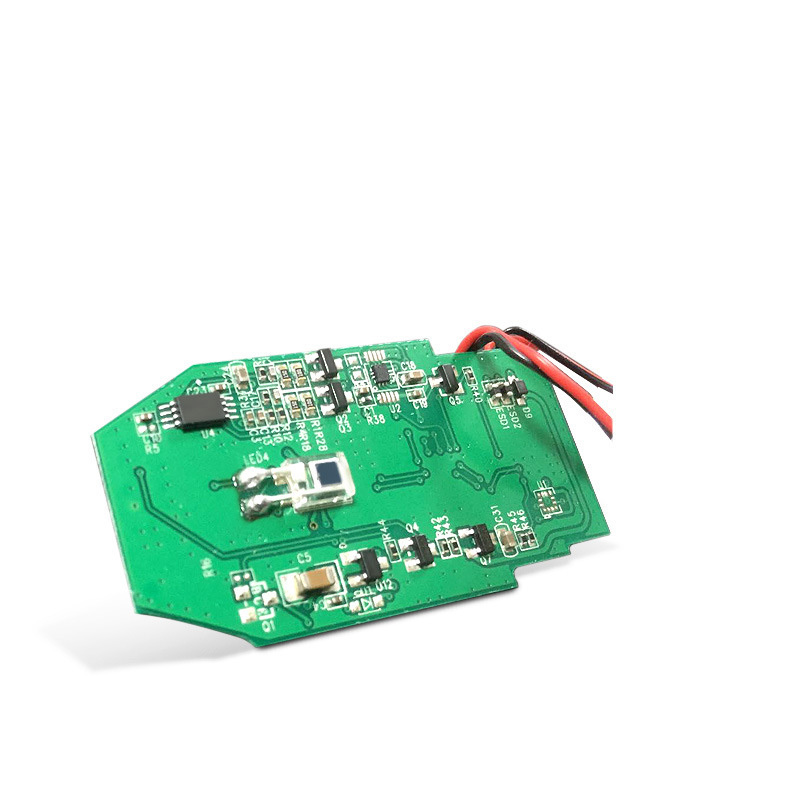

Custom Case

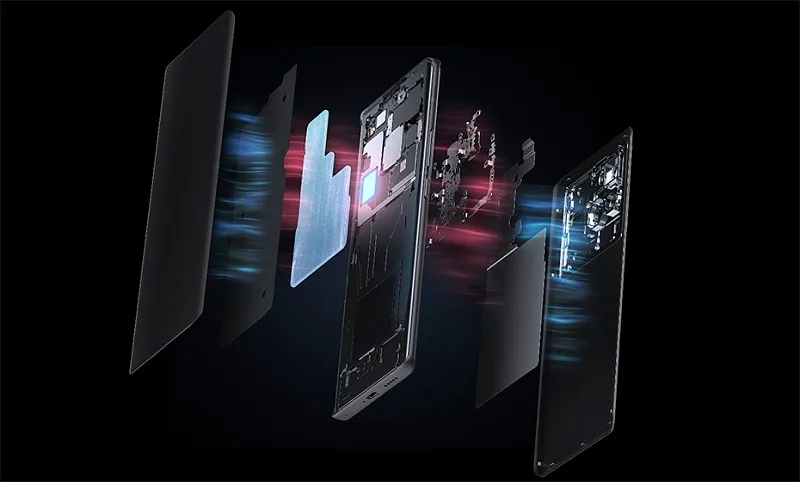

Manufacturers are producing smaller and smaller smartphones and laptops that still have many advanced features, which require small PCBs with large star connections. PCBs used in consumer electronics also need to be relatively low cost to keep the price of the final product low. Manufacturers also need reliable boards because they need their products to perform as expected in order to stay in business.

A large number of consumer products use PCBs, including: Communication devices: Smartphones, tablets, smart watches, radios, and other communication products require PCBs to function. Computers: Both personal and business computers have PCBs. Entertainment systems: Entertainment-related products such as televisions, stereos, and video game consoles all rely on PCBs. Appliances: Many appliances also have electronic components and PCBs, including refrigerators, microwaves, and coffee makers. The use of PCBs in consumer products is certainly not slowing down. The percentage of Americans who now own a smartphone is 77 percent and growing.

Smartphones, computers, and many other consumer products that people use every day require PCBs to function. As we add electronics to more products, PCBs become an important part of our daily lives
